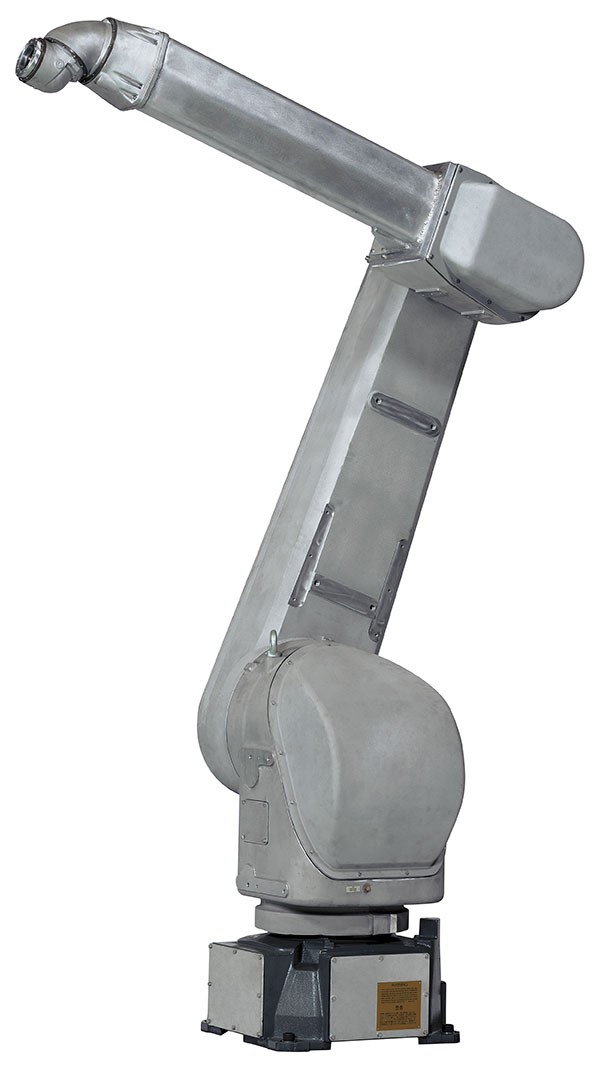

PAINT ROBOT
- Company :Industrial Automation
- Category :FANUC

|
FANUC Robot P-40iA | |
|---|---|---|
| Controlled axes | 6 | |
| Max. payload at wrist | 5kg | |
| Motion range (X, Y) | 1300mm, 2308mm | |
| Repeatability | ±0.03mm | |
| Mass | 110kg | |
| Installation | Floor, Ceiling, Wall, Shelf, Angle | |
| Matching controller / Input power source capacity | R-30iB Mate Plus / 1.5kVA | |
| Application | Painting | |
P-40
|
FANUC Robot P-350iA | P-350iA/45 |
|---|---|---|
| Controlled axes | 6 | |
| Max. payload at wrist | 45kg | |
| Motion range (X, Y) | 2606mm, 4575mm | |
| Repeatability | ±0.06mm | |
| Mass | 590kg | |
| Installation | Floor, Ceiling, Wall, Shelf, Angle | |
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-cabinet) / 12kVA | |
| Application | Painting |
|
FANUC Robot P-250iB | P-250iB/15 |
|---|---|---|
| Controlled axes | 6 | |
| Max. payload at wrist | 15kg | |
|
Motion range(X,Y) |
2800mm, 5272mm | |
| Repeatability | ±0.2mm | |
| Mass | 530kg | |
| Installation | Floor, Ceiling, Wall, Shelf, Angle | |
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-cabinet) / 12kVA | |
| Application | Painting |

|
FANUC Robot P-1000iA | |
|---|---|---|
| Controlled axes | 7 | |
| Max. payload at wrist | 10kg (1500mm/s), 15kg (1200mm/s) | |
| Motion range (X, Y) | 3396mm, 4396mm (Metal Arm) 3348mm, 4343mm (Plastic Arm) |
|
| Repeatability | ±0.5mm | |
| Mass | 700kg | |
| Installation | Wall | |
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-cabinet) / 12kVA | |
| Application | Painting | |
