ARC WELDING ROBOT, SMALL/MEDIUM SIZE ROBOT
- Company :Industrial Automation
- Category :FANUC

|
FANUC Robot ARC Mate 100iD | /16S | ARC Mate 100iD | /10L | /8L | |
|---|---|---|---|---|---|---|
| FANUC Robot M-10iD | M-10iD/12 | |||||
| Controlled axes | 6 | |||||
| Max. payload at wrist | 16kg | 12kg | 10kg | 8kg | ||
| Motion range (X, Y) | 1103mm, 1977mm | 1441mm, 2616mm | 1636mm, 3006mm | 2032mm, 3762mm | ||
| Repeatability | ±0.02mm | ±0.03mm | ||||
| Mass (without stand) | 145kg | 150kg | 180kg | |||
| Installation | Floor, Upside-down, Angle * Floor, Upside-down for 4 brake type |
|||||
| Matching controller / Input power source capacity | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 2kVA | |||||
| Application | Handling | x | ||||
| Assembling | x | |||||
| Arc welding | x | |||||
| Sealing | x | |||||
| Others | Mold handling, Deburring | |||||
M-10
|

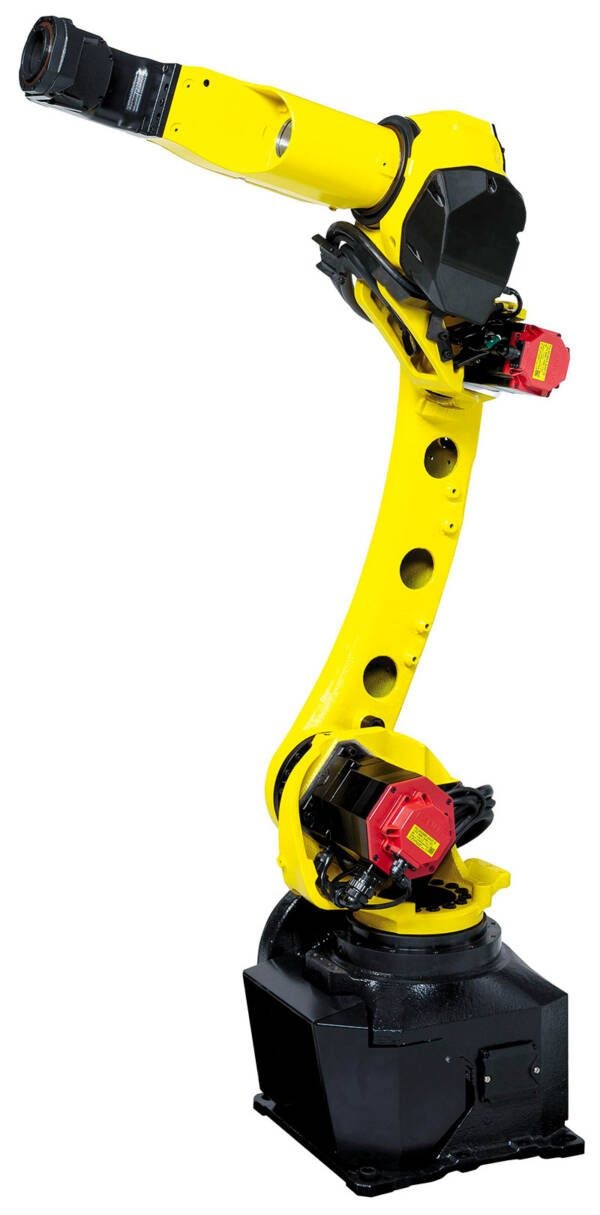

FANUC Robot ARC Mate 100iC | /12S | /12 | /7L | /8L | – | – | |
|---|---|---|---|---|---|---|---|---|
| FANUC Robot M-10iA | /10MS | /10M | ||||||
| Controlled axes | 6 | |||||||
| Max. payload at wrist | 12kg | 7kg | 8kg | 10kg | ||||
| Motion range (X, Y) | 1098mm, 1872mm | 1420mm, 2504mm | 1632mm, 2930mm | 2028mm, 3709mm | 1101mm, 1878mm | 1422mm, 2508mm | ||
| Repeatability | ±0.03mm | ±0.035mm | ±0.03mm | |||||
| Mass | 130kg | 135kg | 150kg | 130kg | ||||
| Installation | Floor, Upside-down, Angle | |||||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 2kVA | |||||||
| Application | Handling | x | x | x | x | x | x | |
| Assembling | x | x | x | x | x | x | ||
| Arc welding | x | x | x | x | x | x | ||
| Sealing | x | x | x | x | x | x | ||
| Others | Mold handling, Deburring | |||||||

|
FANUC Robot ARC Mate 120iD | ARC Mate 120iD | /35 | /12L | |
|---|---|---|---|---|---|
| FANUC Robot M-20iD | M-20iD/25 | ||||
| Controlled axes | 6 | ||||
| Max. payload at wrist | 25kg | 35kg | 12kg | ||
| Motion range (X, Y) | 1831mm, 3461mm | 2272mm, 4343mm | |||
| Repeatability | ±0.02mm | ±0.03mm | |||
| Mass (without stand) | 250kg | ||||
| Installation | Floor, Upside-down, Angle | ||||
| Matching controller / Input power source capacity | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 3kVA | ||||
| Application | Handling | x | |||
| Assembling | x | ||||
| Arc welding | x | ||||
| Sealing | x | ||||
| Others | Mold handling, Deburring | ||||

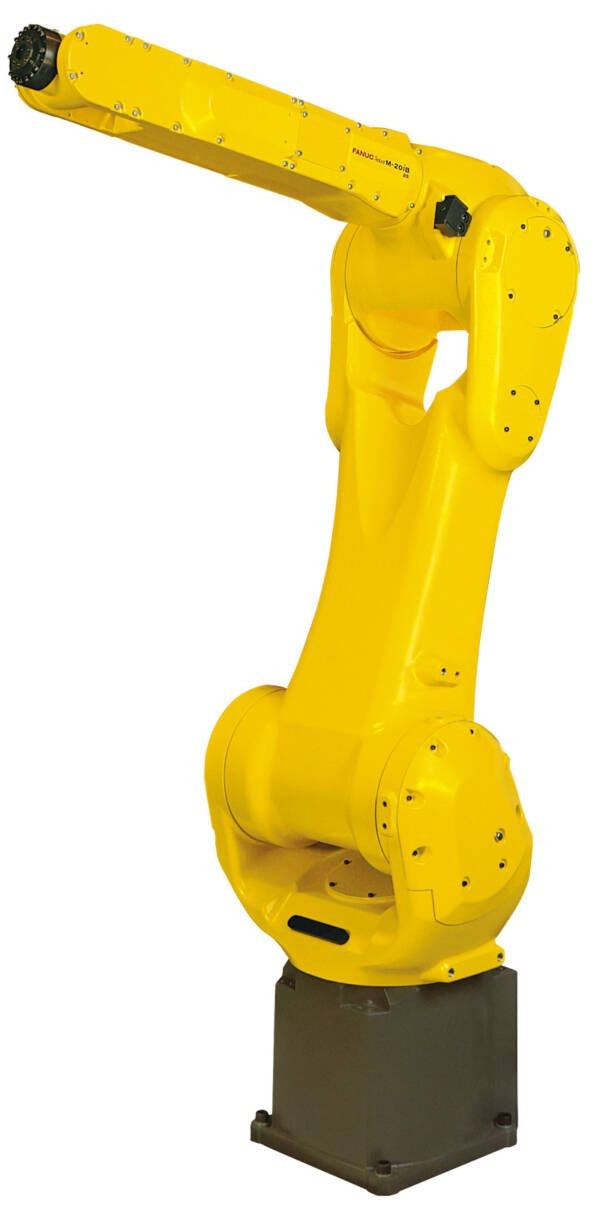

| FANUC Robot ARC Mate 120iC | ARC Mate 120iC | /12L | – | – | ||
|---|---|---|---|---|---|---|
| FANUC Robot M-20iA | M-20iA | /20M | /35M | |||
| Controlled axes | 6 | |||||
| Max. payload at wrist | 20kg | 12kg | 20kg | 35kg | ||
| Motion range (X, Y) | 1811mm, 3275mm | 2009mm, 3672mm | 1813mm, 3278mm | |||
| Repeatability | ±0.03mm | |||||
| Mass | 250kg | 252kg | ||||
| Installation | Floor, Upside-down, Angle | |||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 3kVA | |||||
| Application | Handling | x | x | x | x | |
| Assembling | x | x | x | x | ||
| Arc welding | x | x | x | x | ||
| Sealing | x | x | x | x | ||
| Others | Mold handling, Deburring | |||||
| FANUC Robot M-20iB | /25 | /25C | /35S | ||
|---|---|---|---|---|---|
| Controlled axes | 6 | ||||
| Max. payload at wrist | 25kg | 35kg | |||
| Motion range (X, Y) | 1853mm, 3345mm | 1445mm, 2591mm | |||
| Repeatability | ±0.02mm | ||||
| Mass | 210kg | 205kg | |||
| Installation | Floor, Upside-down, Angle | ||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 3kVA | R-30iB Plus (A-, B-cabinet), R-30iB Mate Plus (standard) / 3kVA | |||
| Application | Handling | x | x | x | |
| Assembling | x | x | x | ||
| Arc welding | x | – | x | ||
| Sealing | x | – | x | ||
| Clean room | – | x | – | ||
| Others | Mold handling, Deburring | – | Mold handling, Deburring | ||

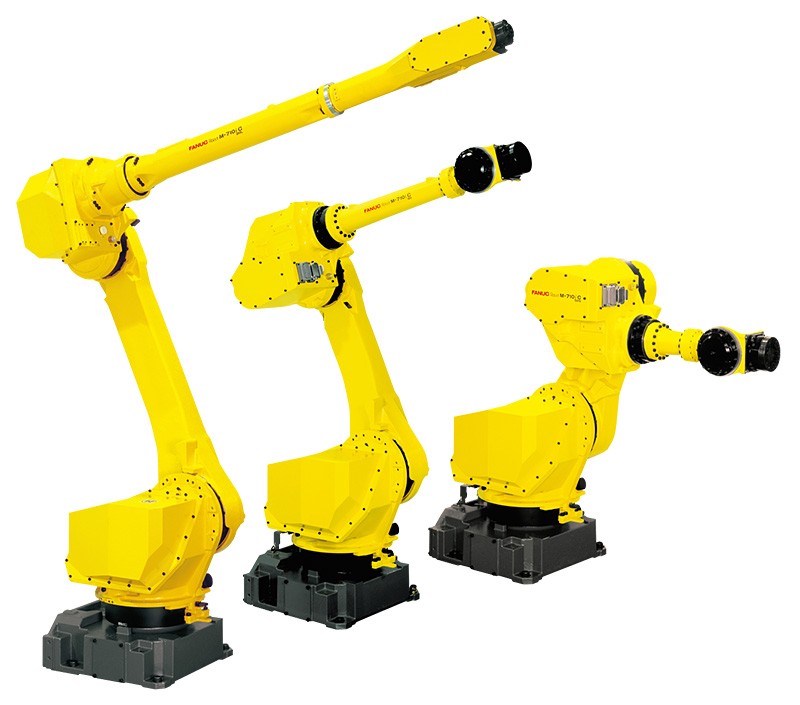

| FANUC Robot M-710iC | /45M | /50 | /70 | /12L | /20L | /20M | /50S | /50H | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Controlled axes | 6 | 5 | ||||||||
| Max. payload at wrist | 45kg | 50kg | 70kg | 12kg | 20kg | 20kg | 50kg | 50kg | ||
| Motion range (X, Y) | 2606 mm, 4575 mm | 2050mm, 3545mm | 3123 mm, 5609 mm | 3110 mm, 558 3mm | 2582 mm, 4609 mm | 1359 mm, 2043 mm | 2003mm, 3451mm | |||
| Repeatability | ±0.06 mm | ±0.03 mm | ±0.04 mm | ±0.06mm | ±0.03mm | |||||
| Mass | 570kg | 560kg | 540kg | 530kg | 545kg | 540kg | ||||
| Installation | Floor, Upside-down, Angle | Floor, Upside-down | ||||||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) / 12kVA | R-30iB/R-30iB Plus (A-, B-cabinet) / 12kVA | ||||||||
| Application | Handling | x | x | x | x | x | x | x | x | |
| Assembling | x | x | x | x | x | x | x | – | ||
| Arc welding | x | x | x | x | x | x | x | – | ||
| Sealing | x | x | x | x | x | x | x | – | ||
| Spot welding | x | x | x | – | – | – | x | – | ||
| Others | Mold handling, Deburring, Laser cutting | – | ||||||||

|

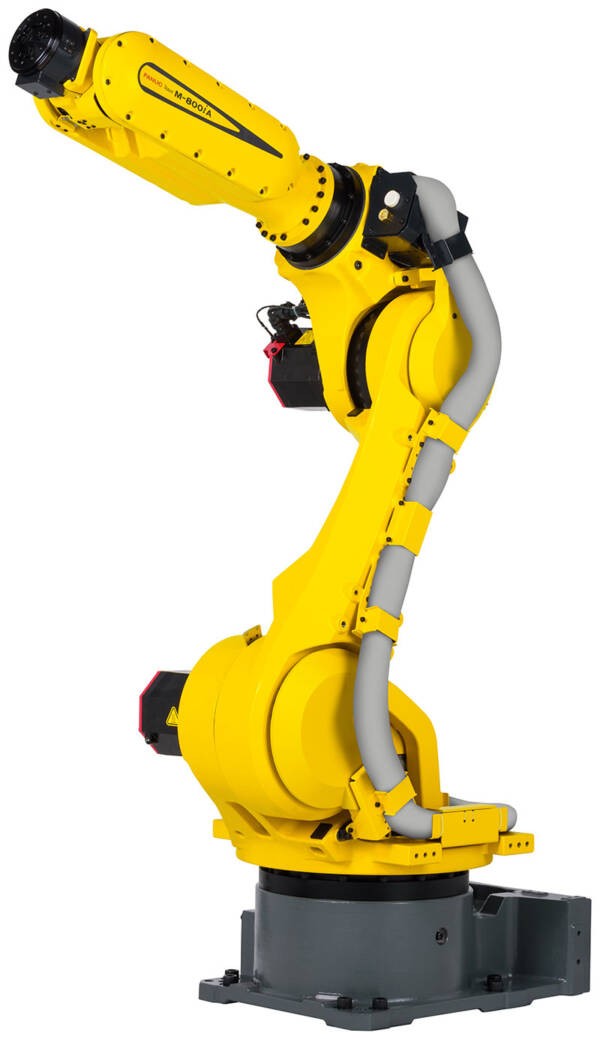

FANUC Robot M-800iA | /60 |
|---|---|---|
| Controlled axes | 6 | |
| Max. payload at wrist | 60kg | |
| Motion range (X, Y) | 2040mm, 3221mm | |
| Repeatability | ±0.015mm | |
| Mass | 820kg | |
| Installation | Floor | |
| Matching controller | R-30iB Plus (A-, B-cabinet) | |
| Input power source capacity | 12kVA | |
| Application | Laser machining |
| FANUC Robot R-1000iA | /80F | /100F | /130F | /120F-7B | /80H | ||
|---|---|---|---|---|---|---|---|
| Controlled axes | 6 | 7 | 5 | ||||
| Max. payload at wrist | 80kg | 100kg | 130kg | 120kg | 80kg | ||
| Motion range (X, Y) | 2230mm, 3738mm | 2230mm, 3779mm | 2230mm, 3465mm | ||||
| Repeatability | ±0.03mm | ||||||
| Mass | 620kg | 665kg | 675kg | 790kg | 610kg | ||
| Installation | Floor, Upside-down | ||||||
| Matching controller | R-30iB/R-30iB Plus (A-, B-cabinet), R-30iB Mate/R-30iB Mate Plus (standard) | R-30iB/R-30iB Plus (A-, B-cabinet) | |||||
| Input power source capacity | 12kVA | 15kVA | 12kVA | ||||
| Application | Handling | x | x | x | x | x | |
| Assembling | x | x | x | x | – | ||
| Sealing | x | x | x | x | – | ||
