DELTA ROBOT
- Company :Industrial Automation
- Category :FANUC

|
FANUC Robot M-1iA | /0.5A | /0.5S | /1H | /0.5AL | /0.5SL | /1HL | |
|---|---|---|---|---|---|---|---|---|
| Controlled axes | 6 | 4 | 3 | 6 | 4 | 3 | ||
| Max. payload at wrist | 0.5kg (std.), 1kg (option) | 1kg | 0.5kg (std.), 1kg (option) | 1kg | ||||
| Motion range (X, Y) | φ280mm, 100mm | φ420mm, 150mm | ||||||
| Repeatability | ±0.02mm | |||||||
| Mass (without stand) | 17kg | 14kg | 12kg | 20kg | 17kg | 15kg | ||
| Installation | Floor, Ceiling, Angle | |||||||
| Matching controller / Input power source capacity | R-30iB Mate/R-30iB Mate Plus (standard, open air) / 1kVA | |||||||
| Application | Handling | x | x | x | x | x | x | |
| Assembling | x | – | – | x | – | – | ||
Brochure (

|

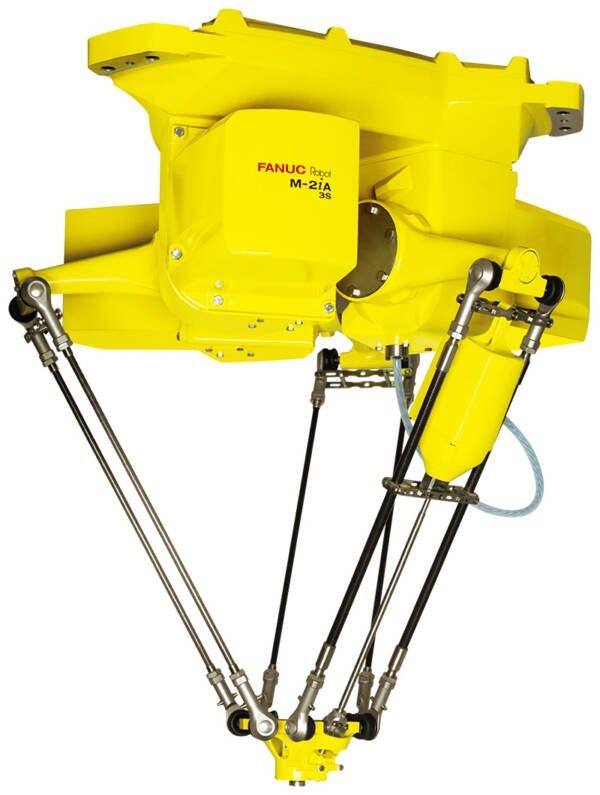

FANUC Robot M-2iA | /3A | /3S | /6H | /3AL | /3SL | /6HL | |
|---|---|---|---|---|---|---|---|---|
| Controlled axes | 6 | 4 | 3 | 6 | 4 | 3 | ||
| Max. payload at wrist | 3kg | 6kg | 3kg | 6kg | ||||
| Motion range (X, Y) | φ800mm, 300mm | φ1130mm, 400mm | ||||||
| Repeatability | ±0.03mm | |||||||
| Mass | 140kg | 130kg | 125kg | 140kg | 130kg | 125kg | ||
| Installation | Ceiling | |||||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 12kVA | |||||||
| Application | Handling | x | x | x | x | x | x | |
| Assembling | x | – | – | x | – | – | ||

|
FANUC Robot M-3iA | /6A | /6S | /12H | |
|---|---|---|---|---|---|
| Controlled axes | 6 | 4 | 3 | ||
| Max. payload at wrist | 6kg | 6kg (std.), 8kg (option) | 12kg | ||
| Motion range (X, Y) | φ1350mm, 500mm | ||||
| Repeatability | ±0.03mm | ||||
| Mass | 175kg | 160kg | 155kg | ||
| Installation | Ceiling | ||||
| Matching controller / Input power source capacity | R-30iB/R-30iB Plus (A-cabinet), R-30iB Mate/R-30iB Mate Plus (standard, open air) / 12kVA | ||||
| Application | Handling | x | x | x | |
| Assembling | x | – | – | ||

|

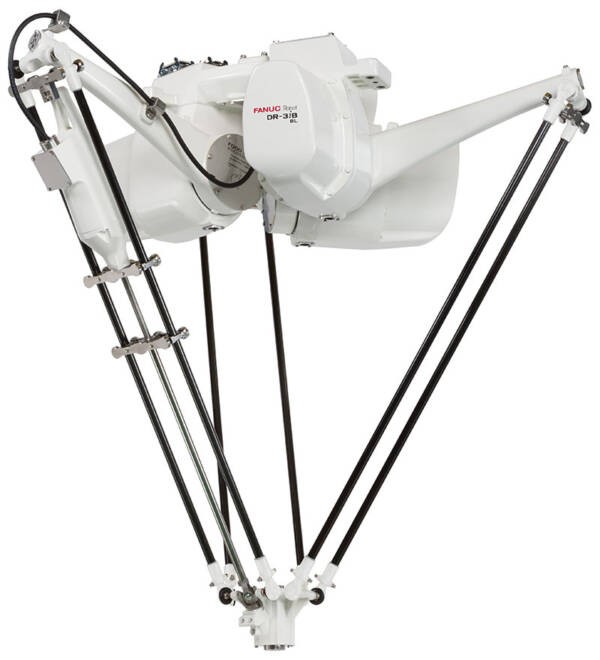

FANUC Robot DR-3iB | /8L |
|---|---|---|
| Controlled axes | 4 | |
| Max. payload at wrist | 8kg | |
| Motion range (X, Y) | φ1600mm, 500mm | |
| Repeatability | ±0.03mm | |
| Mass | 170kg | |
| Installation | Ceiling | |
| Matching controller / Input power source capacity | R-30iB Plus (A-cabinet), R-30iB Mate Plus (standard, open air) / 12kVA | |
| Application | Handling |
